Coatings

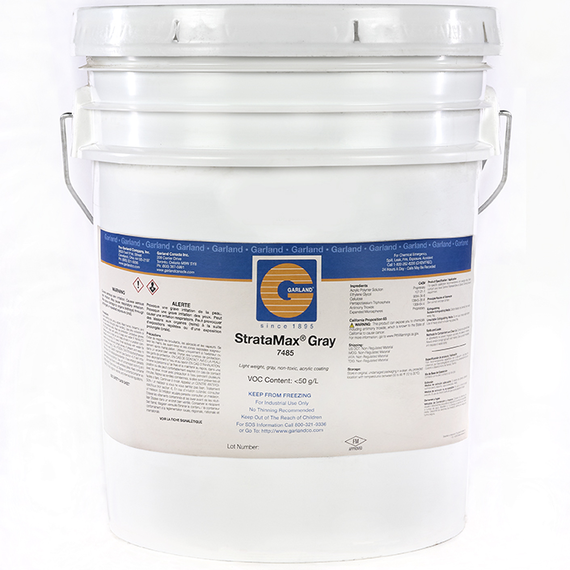

StrataMax™

Heat-Shield Protection
Environmentally Responsible
Installer Friendly

StrataMax is an innovative elastomeric roof coating combining nano-technology and urethane chemistry that performs as a heat shield protecting asphaltic modified bitumen surfaces from UV degradation and infrared radiation. The nano-technology used in StrataMax replaces commonly-used titanium dioxide and reduces the temperature of the underlying roofing materials by as much as 8% compared to traditional roof coatings. StrataMax is 28% lighter than typical elastomeric coatings at 15 lbs/5 gal (6 kg/18.8 L). The product is non-toxic and contains a proprietary blend of biocides to inhibit the growth of bacteria, algae and fungi.

Speak with a Rep

Product Specifications

Method	Description
Spray	Refer to StrataMax Spray Application Guide. Stir product before use, but do NOT thin. StrataMax can be applied by spray, brush or roller. First, apply one coat of StrataMax to the prepared surface at a rate of 1 gal./100 sq. (0.41 l/ m²). After applying the first coat, top with one coat of the same color StrataMax in a crosshatch pattern at a rate of 1 gal./100 sq. (0.41 l/ m²). Total coverage rate should be 2 gal./100 sq. ft. (0.82 l/m²).
Brush	Stir product before use, but do NOT thin. StrataMax can be applied by spray, brush or roller. First, apply one coat of StrataMax to the prepared surface at a rate of 1 gal./100 sq. (0.41 l/ m²). After applying the first coat, top with one coat of the same color StrataMax in a crosshatch pattern at a rate of 1 gal./100 sq. (0.41 l/ m²). Total coverage rate should be 2 gal./100 sq. ft. (0.82 l/m²).
Roller	Stir product before use, but do NOT thin. StrataMax can be applied by spray, brush or roller. First, apply one coat of StrataMax to the prepared surface at a rate of 1 gal./100 sq. (0.41 l/ m²). After applying the first coat, top with one coat of the same color StrataMax in a crosshatch pattern at a rate of 1 gal./100 sq. (0.41 l/ m²). Total coverage rate should be 2 gal./100 sq. ft. (0.82 l/m²).

Physical Property	Value
Tensile Strength	250 psi minimum
Elongation	150% minimum

Eco-Fact	Value
VOC	<50 g/1

Type	Link
Data Sheets	StrataMax Technical Data Sheet
SDS	StrataMax Safety Data Sheet
Benefits	StrataMax Benefits
Application Guidelines	StrataMax Application Guidelines

Features

Heat-Shield Protection

In lab testing, an asphaltic roofing surface protected by StrataMax was 8% cooler than a substrate coated with a traditional elastomeric coating. When the roofing assembly does not experience the range of highs and lows that come with temperature variance throughout the day, it will remain viable longer.

Environmentally Responsible

StrataMax contains a proprietary, specifically-engineered biocide package that inhibits the formation and growth of mold, fungi, algae, and bacteria on the coating’s surface. With a flexible, durable formulation engineered to stretch with a roof’s movement over time, StrataMax will continue to protect the building for years.
