Community College Preserves Architectural Character While Solving Leaks

Roxbury Community College, located just outside of Boston, offers 24 different associate degree programs, sending graduates into the professional world with knowledge of Accounting, Nursing, Information Technology, and more. However, as their 25-year old roof began to leak, the operations team at RCC knew that they would need to bring in outside expertise from roofing and architecture to solve their problem. As RCC Vice President Andy Vidal relayed, “With four buildings to re-roof and unique architectural elements throughout, we wanted to make sure we had both and appreciation of design as well as an understanding of watertight performance.”

  • Project: Roxbury Community College
  • Location: Roxbury, MA
  • Garland Territory Manager: Brian Kender
  • Contractor: Greenwood Industries
  • Materials Used: StressPly EUV/Weatherking Adhesive/StressBase 80; CPR Metal Coating
Roxbury CC 36

STEP 1: Project Management

Vidal and the RCC team started their process by bringing in an outside project management firm, Anser Advisory. Jenn Weiss-Donovan served as the program manager for RCC. Said Weiss-Donovan, “Capital projects, especially for public entities like RCC, are highly complex with a lot of moving pieces. Our role is to ensure that we have the best possible team in place who understand their part of the process, as well as the impact that their performance has on every other aspect of the project.”

Roxbury CC 18

Step 2: Architectural Design

The next element in RCC’s team was filled by ICON Architecture, a leading design firm located in Boston. Said Vidal, “Our building profile is unique in that we have both flat and sloped metal sections. It was important for us to have not just the waterproofing to solve the leaky flat section, but also identify a solution to beautify the sloped sections that are highly visible, and which had become pretty rough-looking over the years.”

Roxbury CC 05

Step 3: Roofing

During the bid process, the RCC team identified one bidder who had solutions for both the flat and sloped sections of the roof – The Garland Company, and Boston Territory Manager Brian Kender.

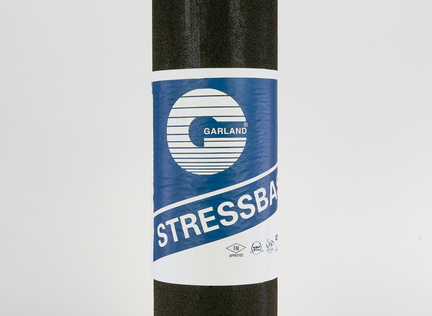

After performing a detailed assessment of the roof, Kender recommended a 2-ply modified system for the 5,000 square foot flat section with Garland’s StressBase 80 base sheet beneath StressPly EUV FR Mineral, adhered by Weatherking high-performance adhesive. Said Kender, “StressPly EUV has outstanding mineral retention. StressPly EUV’s technology protects the membrane from thermal degradation and keep the system like new longer.”

For the 27,000 square foot sloped sections of the roof, Kender suggested Garland’s CPR metal coating, color-matched to the exact specifications set out by ICON Architecture. CPR dries to a monolithic rubbery membrane that can elongate and recover as the metal expands and contracts over the course of a day.

Vidal and the RCC team signed onto Kender’s plan, and the project was set to begin.

Roxbury CC 25

Step 4: Installation

Greenwood Industries was the roofing contractor on the project. The team from Greenwood removed the ballast from the EPDM roof and installed the 2-ply system on the flat section of the roof. Next, they roll-applied the CPR coating to the sloped sections. Said Vidal, “The project went as smoothly as we could have hoped. Not only did we come away with a leak-free interior, but the exterior of the building got a much-needed aesthetic boost from the coating on the metal roof.”

Added Weiss-Donovan, “From a project management perspective, it’s always easier to repeat a process than do each new project ad hoc. This project covered 2 sections of RCC’s campus. As the remaining sections go out for bid, the RCC team now knows how the process should work and understands all the steps.”

Roxbury CC 34

Step 5: Warranty

Kender closed out this section of the RCC project by delivering a 30-year warranty for the StressPly EUV system and a 10-year coating warranty for the CPR. Said Kender, “Roxbury Community College has been a part of this area for a long time. It’s an honor to preserve both the architectural character and a leak-free environment in this facility for decades to come.”
